Commercial escalator details

Description

The KONE TravelMaster™ 110 is an eco-efficient commercial escalator that is optimized for both indoor retail environments and outdoor escalator use cases like an outdoor mall or shopping center.

Specifications

  • Operational environment: indoor, semi-outdoor, full outdoor
  • Speed: 0.5 m/s
  • Inclination: 30º, 35º
  • Step width: 600, 800, 1000 mm
  • Vertical rise: up to 13 m

Commercial escalator safety

  • Safety is the starting point for every KONE escalator. The TravelMaster™ 110 commercial escalator conforms to all local and international safety codes.
  • We provide standard commercial escalator safety features including comb plate impact device switches and emergency stop buttons for passengers.

Tools and downloads

More Tools And Downloads

Commercial escalator options and highlights

Travelmaster 110, 120

Commercial escalator energy-efficiency

  • Smart operational modes and inverter optimize commercial escalator energy consumption under different load conditions, including outdoor escalator use cases
  • Long lasting commercial escalator LED lighting is up to 80% more efficient than fluorescent lighting and lasts up to 10 times longer
  • Energy efficient inverter provides smooth speed regulation during standby operation and minimizes energy consumption at full speed
Travelmaster 110, 120

COMMERCIAL ESCALATOR SAFETY

In addition to the standard commercial escalator safety features, we offer optional safety features including

  • New traffic commercial escalator signalization solutions to provide extra guidance
  • Audible alarms provide clear guidance on escalator travel direction, including outdoor escalator use cases
  • Alarm for travel direction if passengers enter a commercial escalator in the wrong direction
  • Fall-prevention barrier and extended balustrades provide additional passenger protection
Travelmaster 110

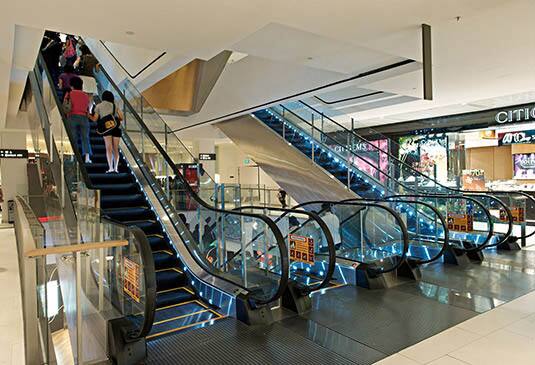

COMMERCIAL ESCALATOR DESIGN

High quality visual design for both indoor and outdoor escalator use cases:

  • Innovative and attractive commercial escalator lighting solutions that also improve passenger guidance and safety
  • Wide range of design options to create stunning visual effects and perfectly match your building’s architecture
  • High quality component finishes and a harmonized look and feel throughout the KONE product portfolio

Contact us for a detailed cost estimate

Escalator and autowalk solutions

Product name
Type
Segment
Maximum rise
Speed
Inclination
KONE TransVario direct drive available
24/7 Connected Services available
Energy-efficiency class
TravelMaster™ 110
EscalatorCommercial, retail, hotel, office, multi-use, stadium, medical
13 m
0.5 m/s30°, 35°
TravelMaster™ 110TYesA+++
TravelMaster™ 115
Inclined autowalkCommercial, retail, hotel, office, multi-use, stadium, medical
7 m
0.5 m/s
10°, 12°

YesA+++
TravelMaster™ 120
EscalatorInfrastructure
15 m
0.5, 0.65, 0.75 m/s27.3°, 30°, 35°TransitMaster™ 120TYesA+++
TravelMaster™ 140
EscalatorInfrastructure
35 m
0.5, 0.65, 0.75 m/s27.3°, 30°TransitMaster™ 140TYesA+++
TravelMaster™ 165
Horizontal autowalkInfrastructure
100 m length
0.5, 0.65, 0.75 m/s
0-6°

YesA+++
